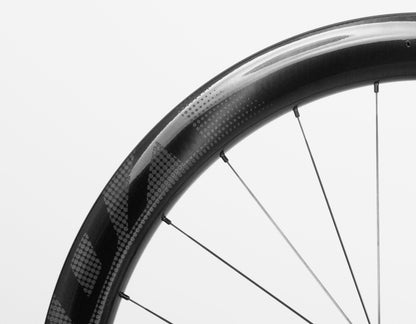

VORTEX N5
VORTEX N5
Couldn't load pickup availability
Product Description
The N Series is available with a selection of premium hub options, including Nonplus NP01, DT Swiss 180, DT Swiss 240, Carbon-T, Extralite SPD3 and Tactic TR01.
This gives riders the flexibility to choose a wheel build that matches their own priorities.
DT Swiss options offer proven reliability, easy serviceability and strong global support.
Extralite and Carbon-T are suited to riders looking for a more boutique, lightweight build.
Tactic TR01 and Nonplus NP01 provide further high-end options for riders who want something more distinctive and performance-focused.
Paired with Sapim CX-Super spokes, the N Series is not positioned as a simple off-the-shelf carbon wheelset. It is a refined wheel platform built around premium components, thoughtful structure and a more complete riding experience.
Discover VORTEX Technologies:
https://vortex-cycling.com/en/technologies/

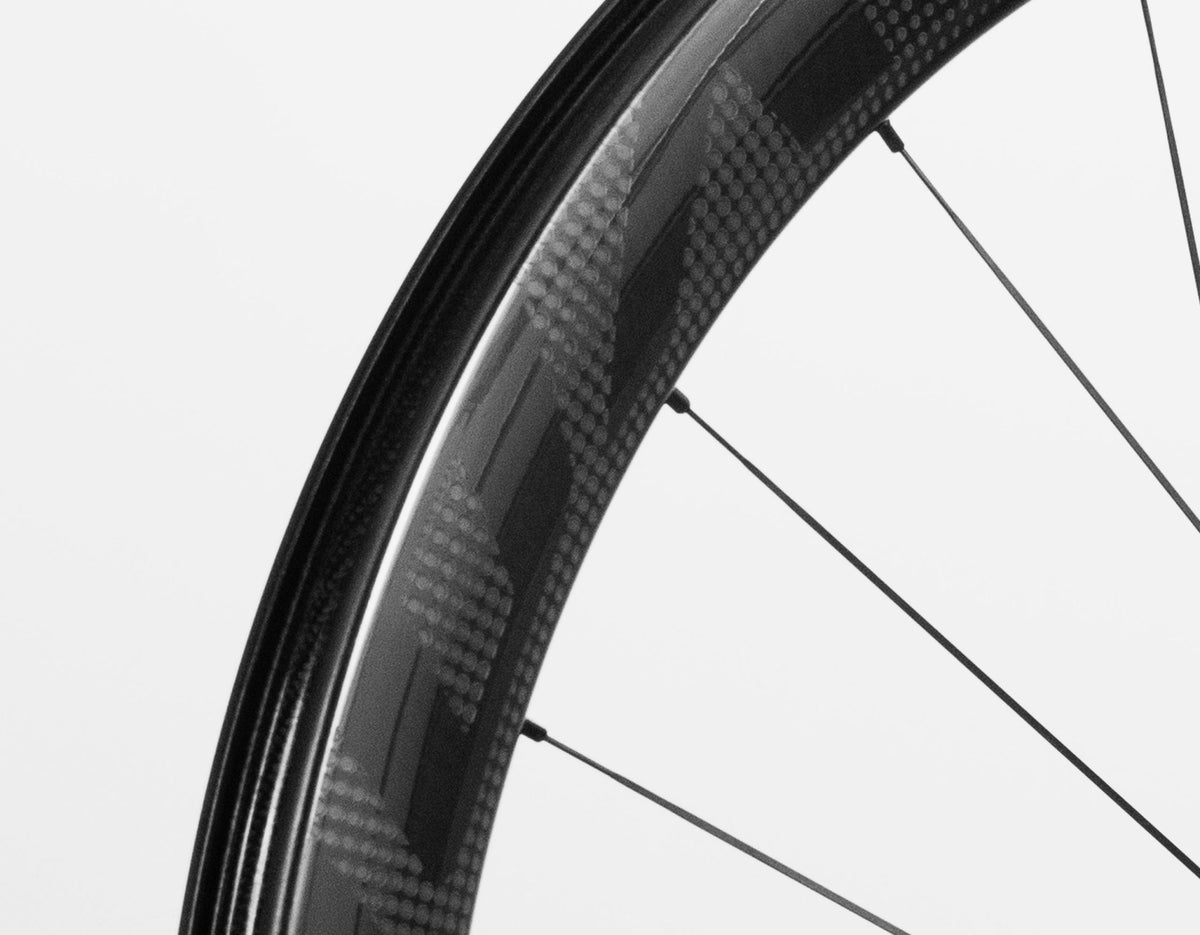

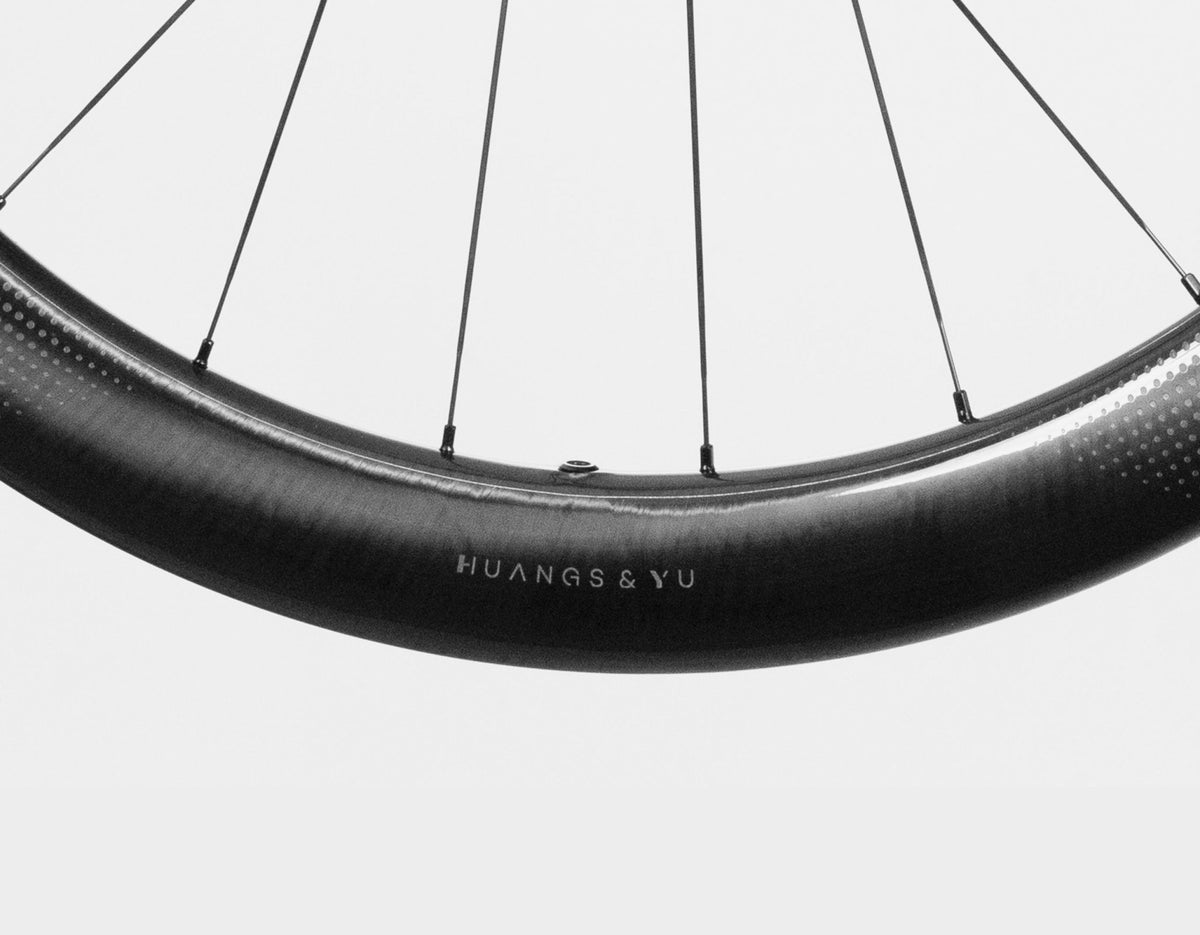

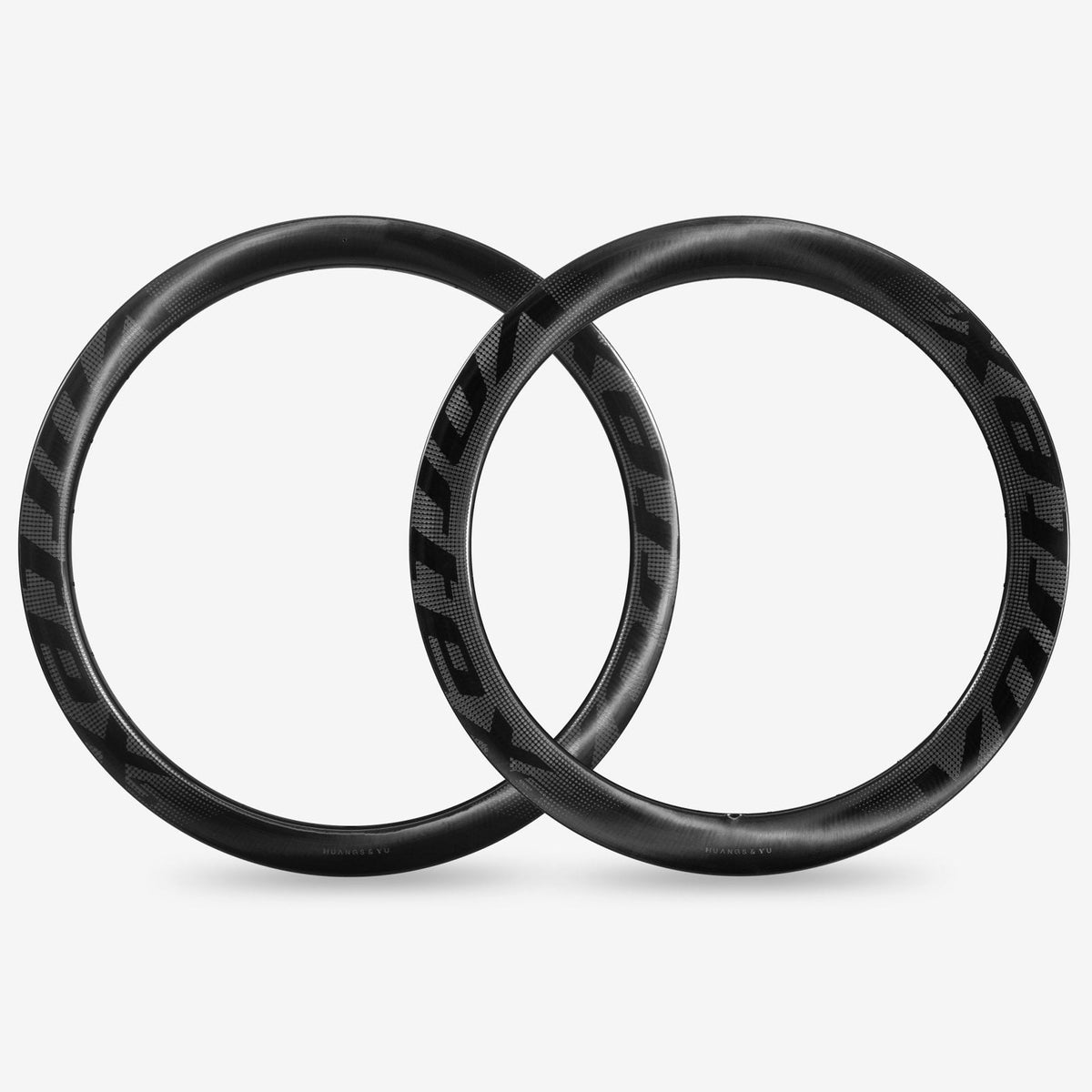

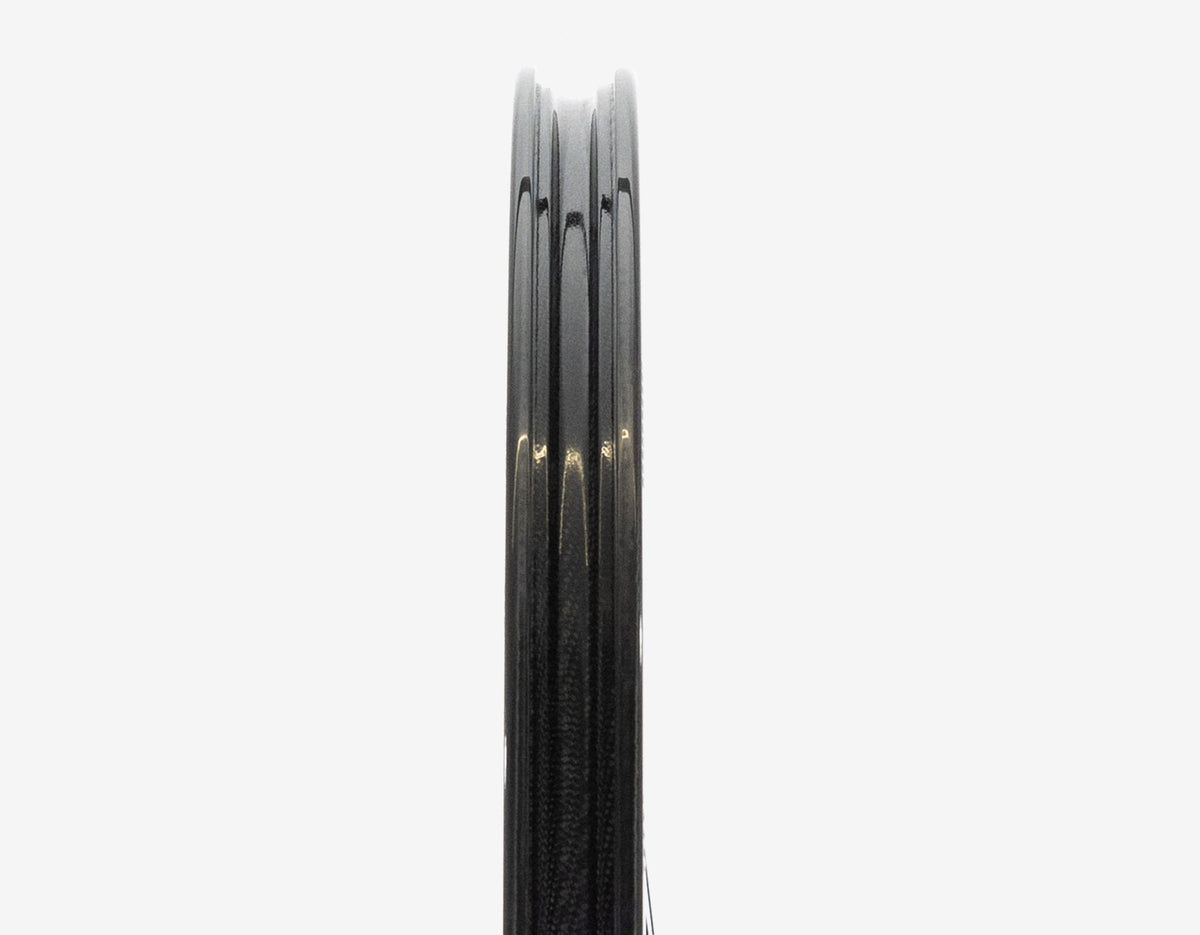

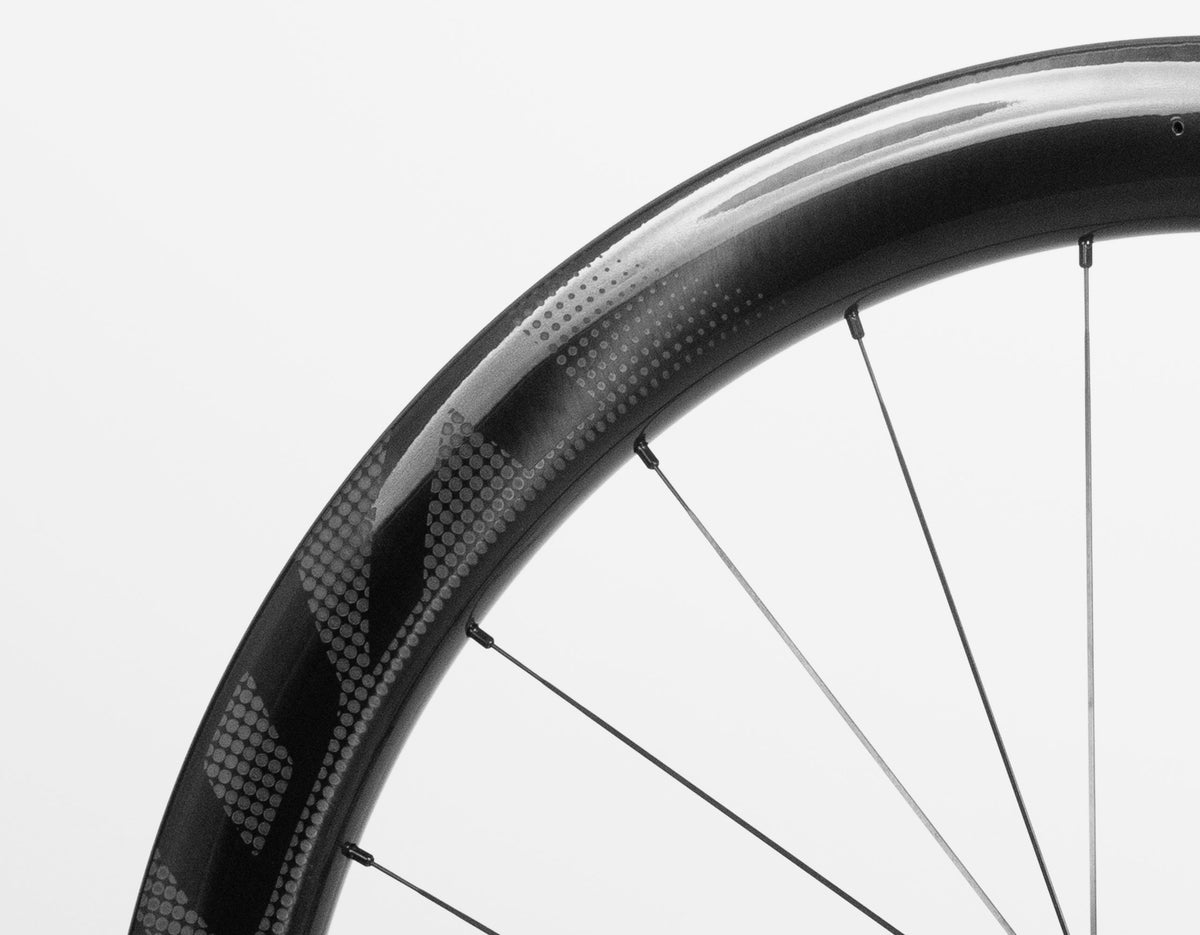

Rim
|
|
N4 |
N51 |
N5/N6 |
N8 |
|
Rim Weight |
≤640g/pair |
≤760g/pair |
≤840g/pair |
≤1050g/pair |
|
Material |
TORAY T1100 |
TORAY T1100 |
TORAY T1100 |
TORAY T1100 |
|
Rim Height |
40mm |
51mm |
50/60mm |
80mm |
|
Holes |
24 |
24 |
24 |
24 |
|
External Width |
27mm |
31mm |
36/29mm |
31mm |
|
Internal Width |
21mm |
21mm |
21mm |
21mm |
|
Tubeless |
Yes |
Yes |
Yes |
Yes |
|
Hooked |
Yes |
Yes |
Yes |
Yes |
|
Aero-optimized Tire Width |
25c–26c |
28c–30c |
28c–30c / 25c–28c |
26c–30c |
|
Tire Width Compatibility |
25c–50c |
25c–50c |
25c–50c |
25c–50c |
|
ERD |
560mm |
538mm |
538mm / 520mm |
480mm |
Finished Weight
Built with Sapim CX-Super Spokes
|
Hub Option |
N4 |
N51 |
N5/N6 |
N8 |
|
Nonplus NP01 |
1055g |
1171g |
1247g |
1451g |
|
DT 180 |
1134g |
1250g |
1326g |
1530g |
|
DT 240 |
1158g |
1274g |
1350g |
1554g |
|
CARBON-TI |
1132g |
1248g |
1324g |
1528g |
|
Extralite SPD3 |
1058g |
1174g |
1250g |
1454g |
|
Tactic TR01 |
1067g |
1183g |
1259g |
1463g |
