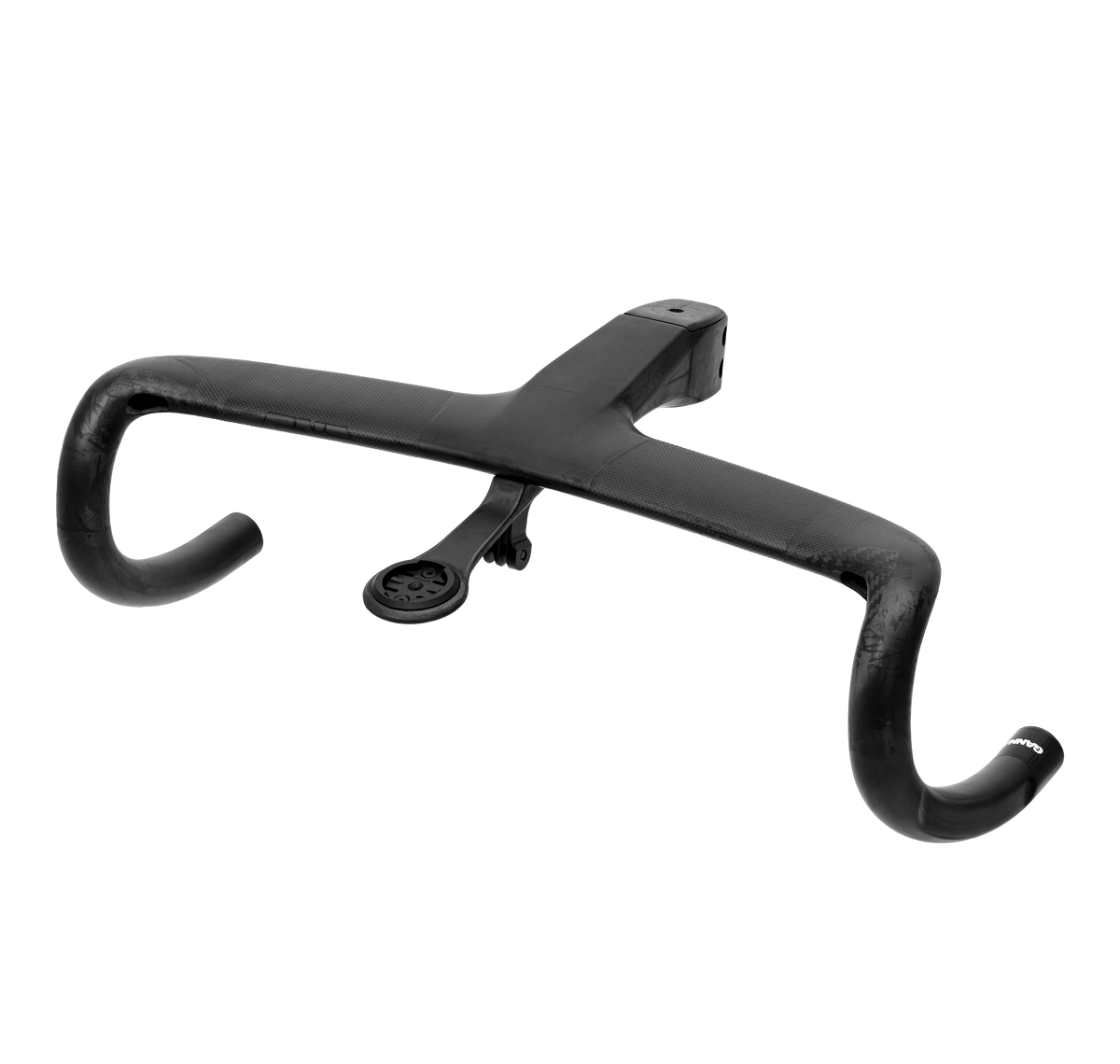

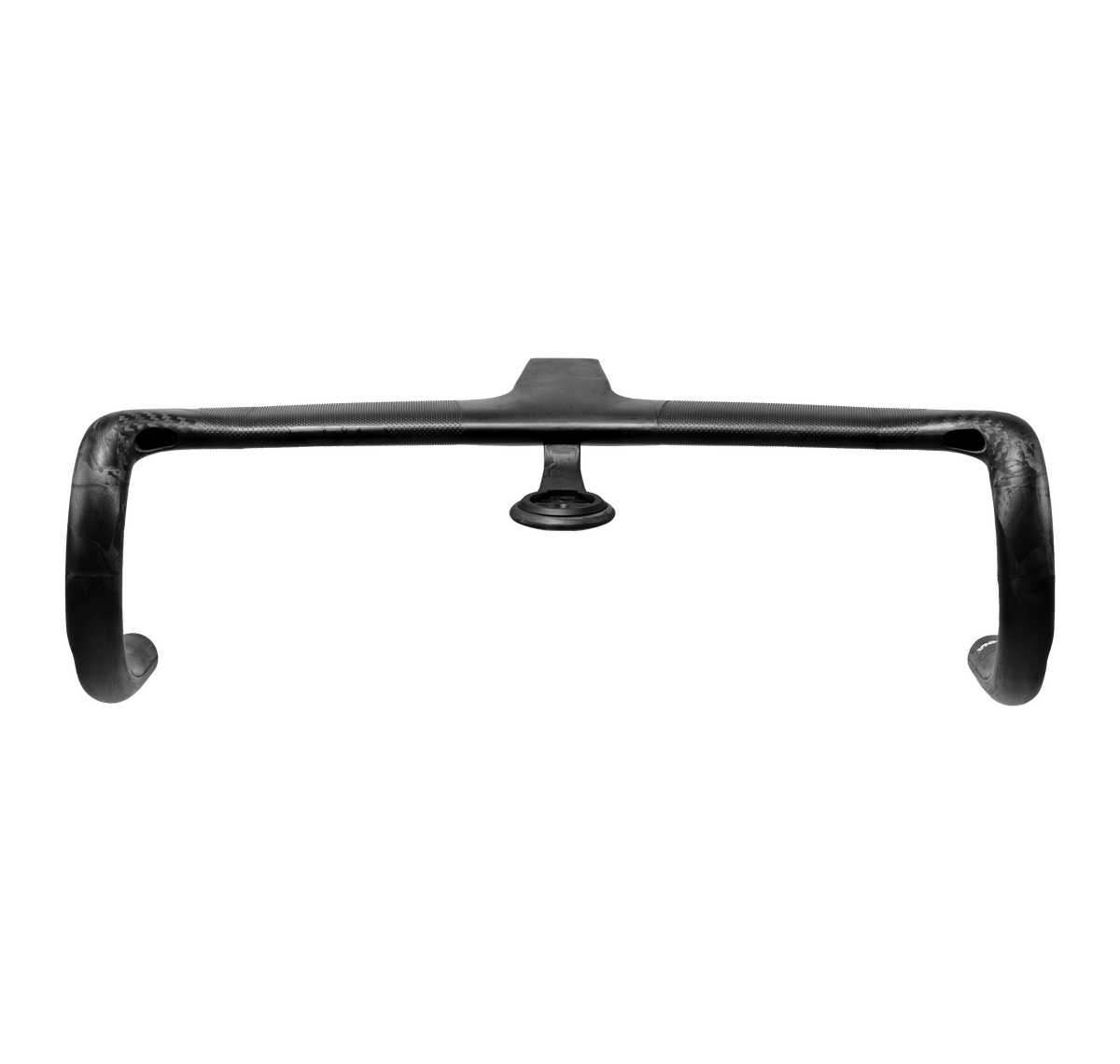

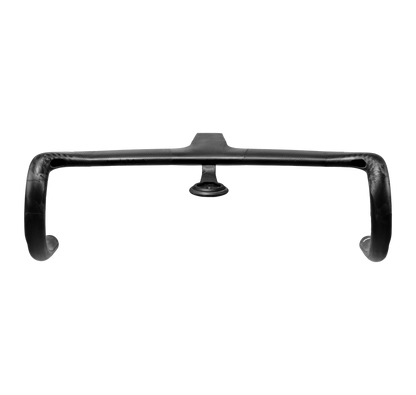

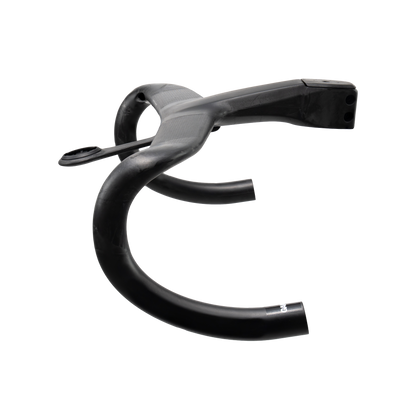

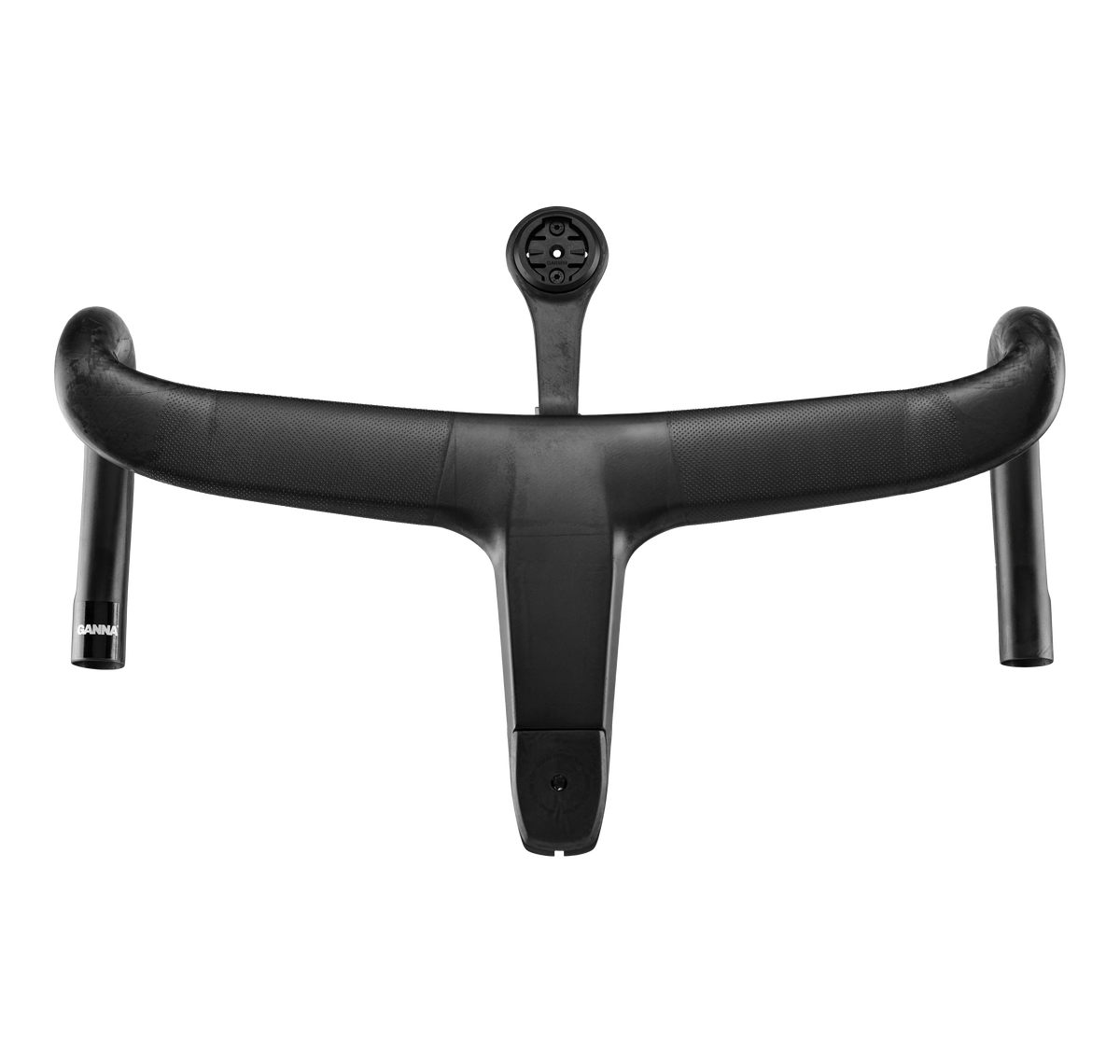

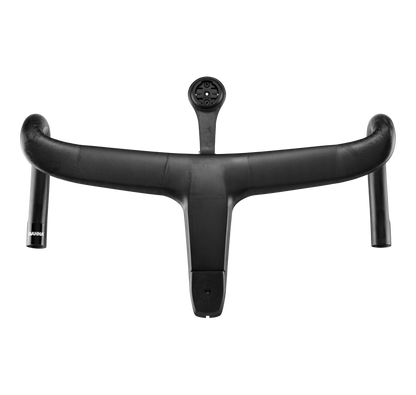

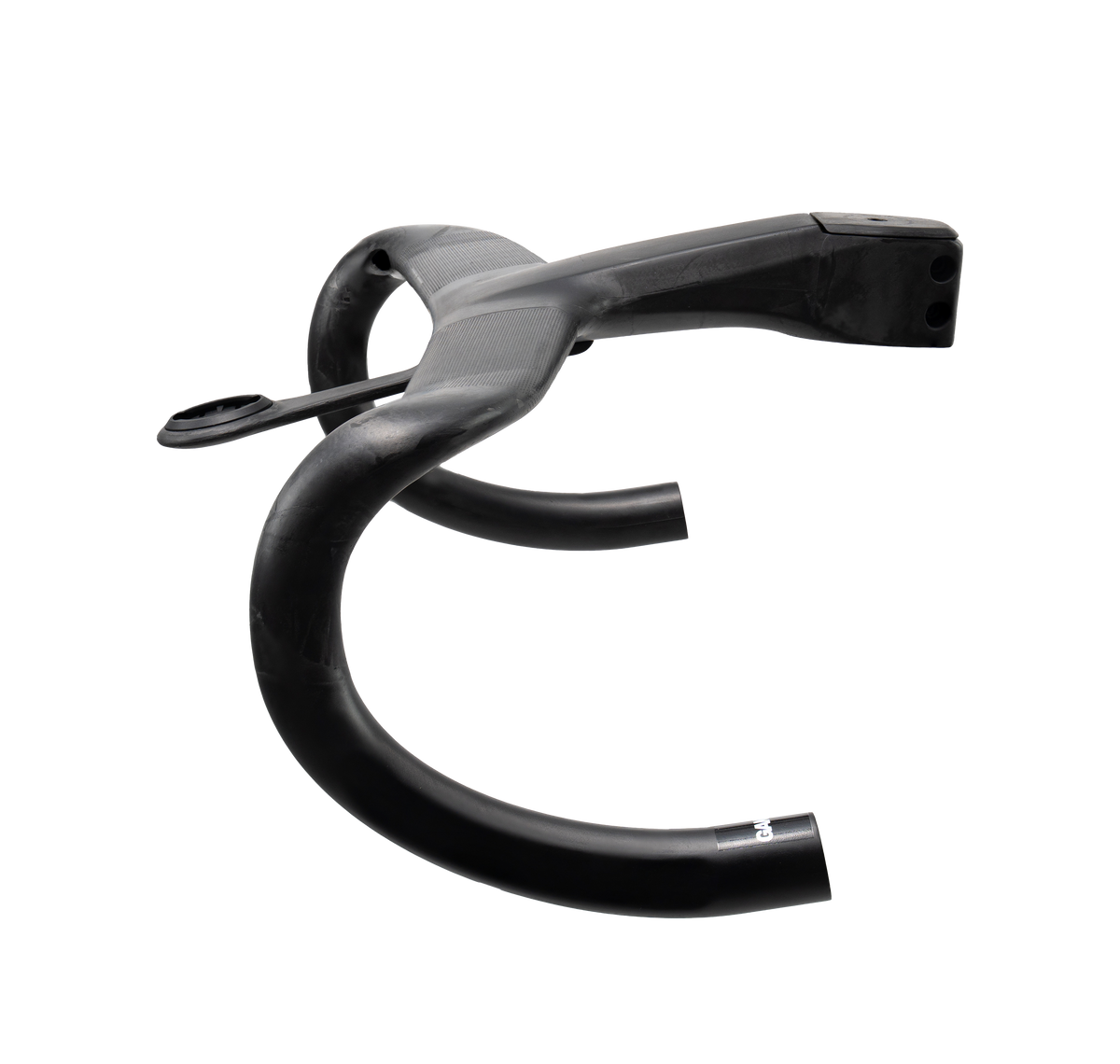

GANNA Angle° Pro Integrated Carbon Handlebar
Premium one-piece integrated carbon cockpit developed for modern road racing and high-performance endurance riding, combining aerodynamic efficiency, lightweight construction and precise handling in a race-focused package.

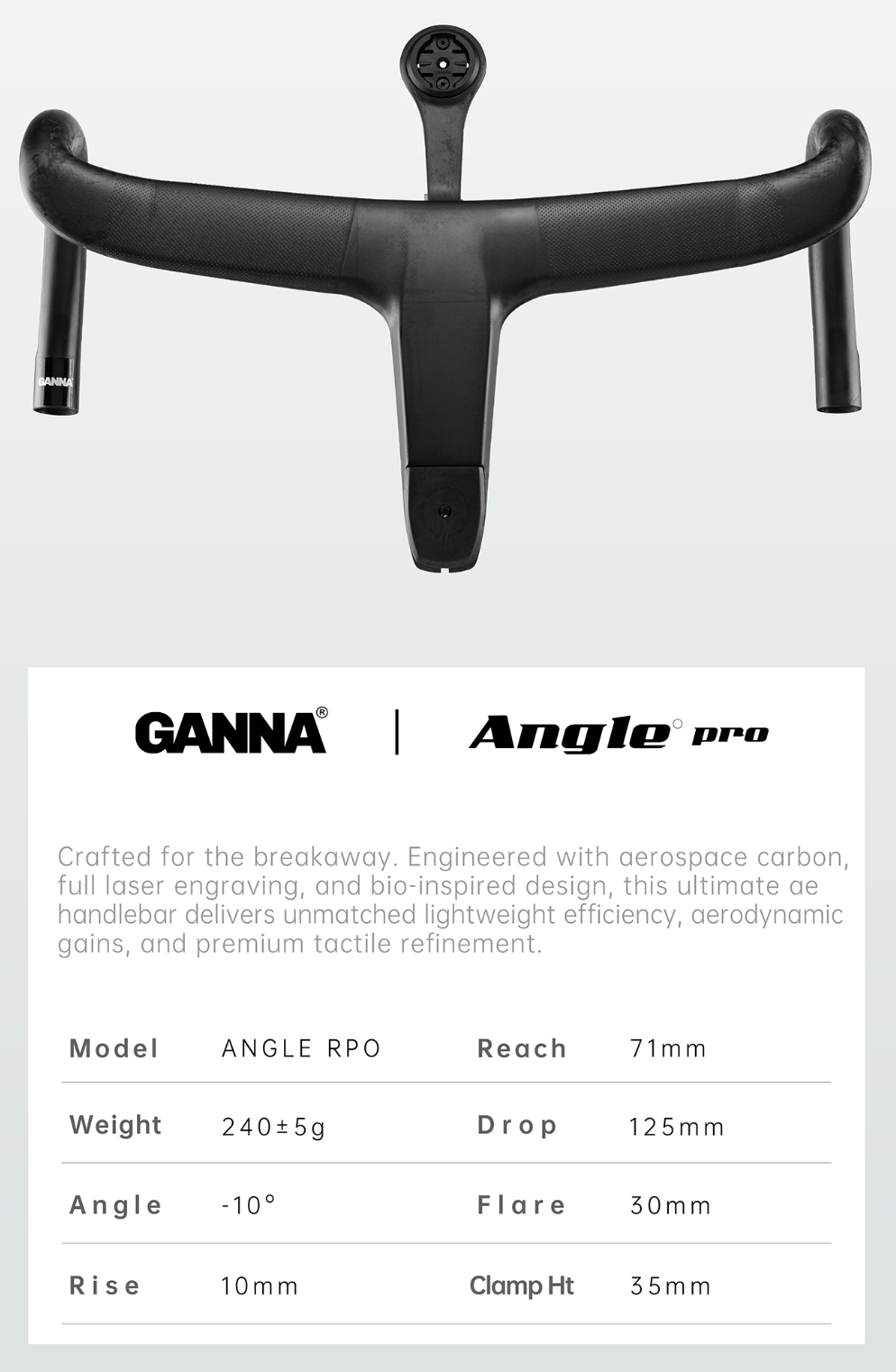

Technical Specifications
- Width: 340, 360, 380, 400 or 420mm
- Stem Length: 80, 90, 100, 110, 120, 130 or 140mm
- Weight: 240±5g (380mm × 100mm)
- Construction: One-Piece Integrated Handlebar & Stem
- Material: Toray M40X Carbon Fibre
- Reach: 71mm
- Drop: 125mm
- Drop Flare: 30mm
- Stem Angle: -8°
- Cable Routing: Fully Internal Compatible
- Steerer Compatibility: OD1 (28.6mm) & OD2 (31.8mm) Compatible
- Groupset Compatibility: Electronic Drivetrains Compatible
AERO PERFORMANCE WITHOUT COMPROMISE
The GANNA Angle° Pro is constructed using premium Toray M40X carbon fibre throughout the entire cockpit structure. Renowned for its exceptional stiffness-to-weight ratio, M40X carbon enables a lightweight construction while delivering the rigidity required for precise steering, efficient power transfer and confident sprinting performance.
Its aerodynamic integrated design features a flattened aero top profile that reduces frontal area while providing a stable and comfortable hand position for riders spending long periods in an aero riding position, while fully concealed cable routing creates a clean, race-focused front end with a modern professional appearance.
OPTIMISED FOR MODERN ROAD RACING
A compact 71mm reach and 125mm drop allow quick transitions between hand positions while maintaining comfort during long rides and aggressive race efforts.
The subtle 6.9°/30mm flare provides improved control and stability when riding in the drops without compromising aerodynamic efficiency or road-bike handling characteristics.
LIGHTWEIGHT COMFORT & CONTROL

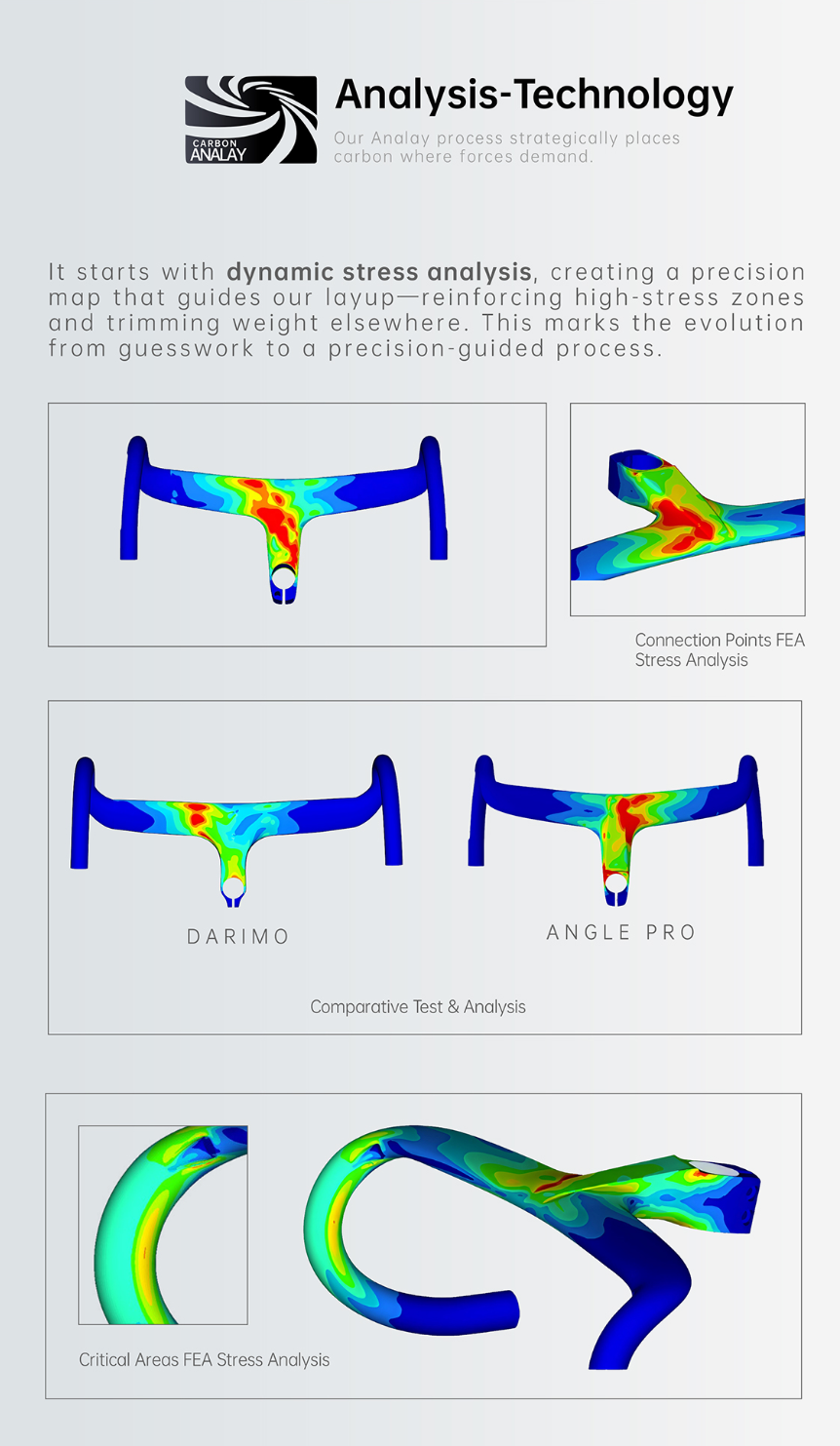

The advanced carbon layup is designed to absorb road vibrations while retaining the stiffness required for hard accelerations and sprint efforts.
The broad flat-top section provides additional support and comfort compared to traditional round-profile handlebars, making it ideal for long training rides, racing and fast group rides.

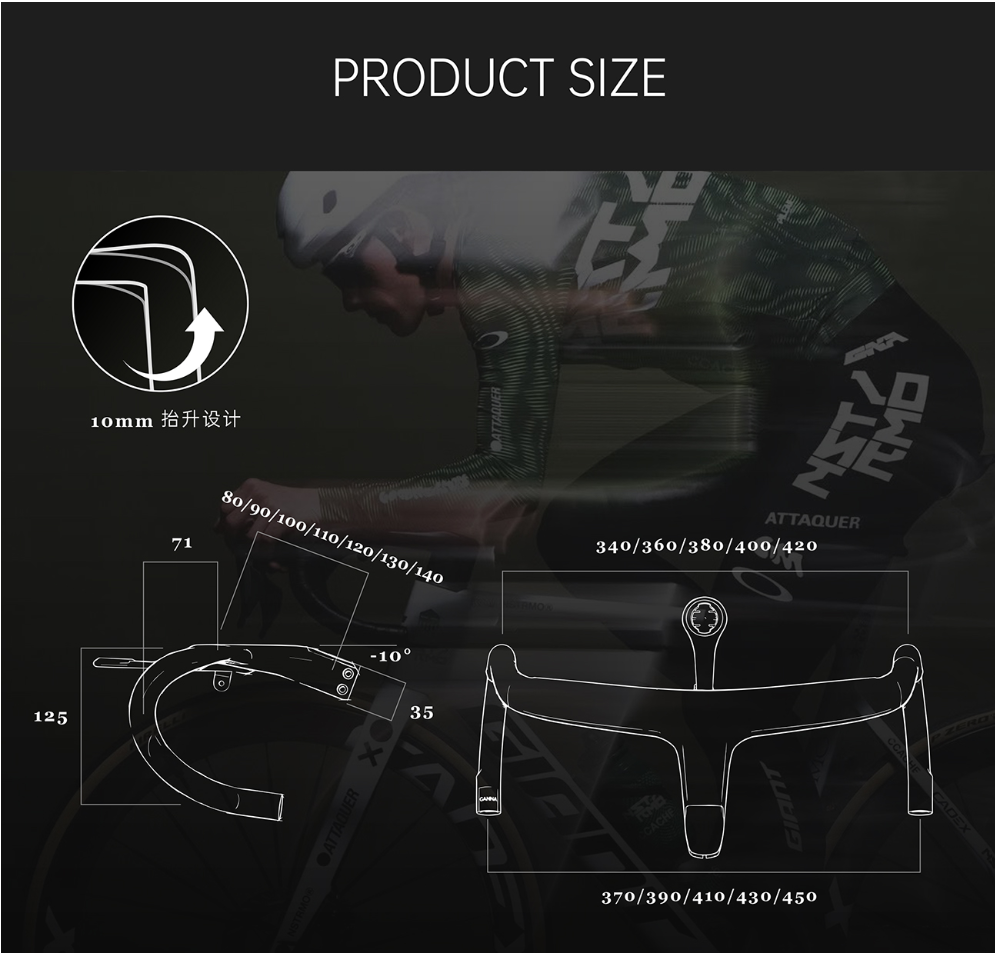

AVAILABLE SIZES
(Handlebar Width / Stem Length)
340mm × 80-140mm
360mm × 80-140mm
380mm × 80-140mm
400mm × 80-140mm
420mm × 80-140mm

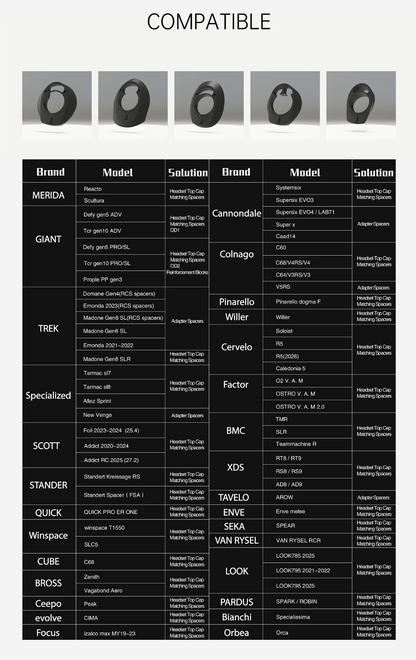

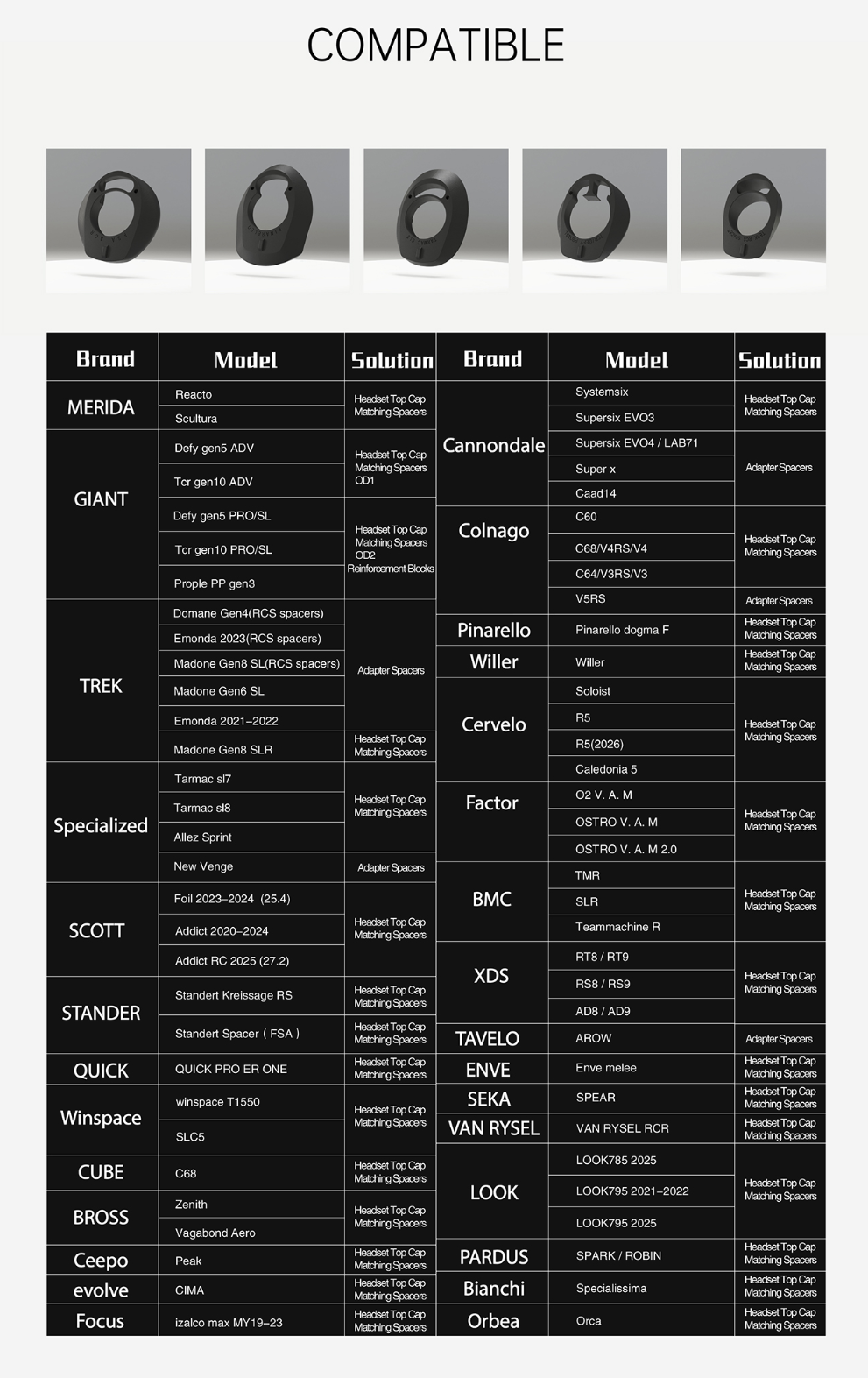

COMPATIBILITY

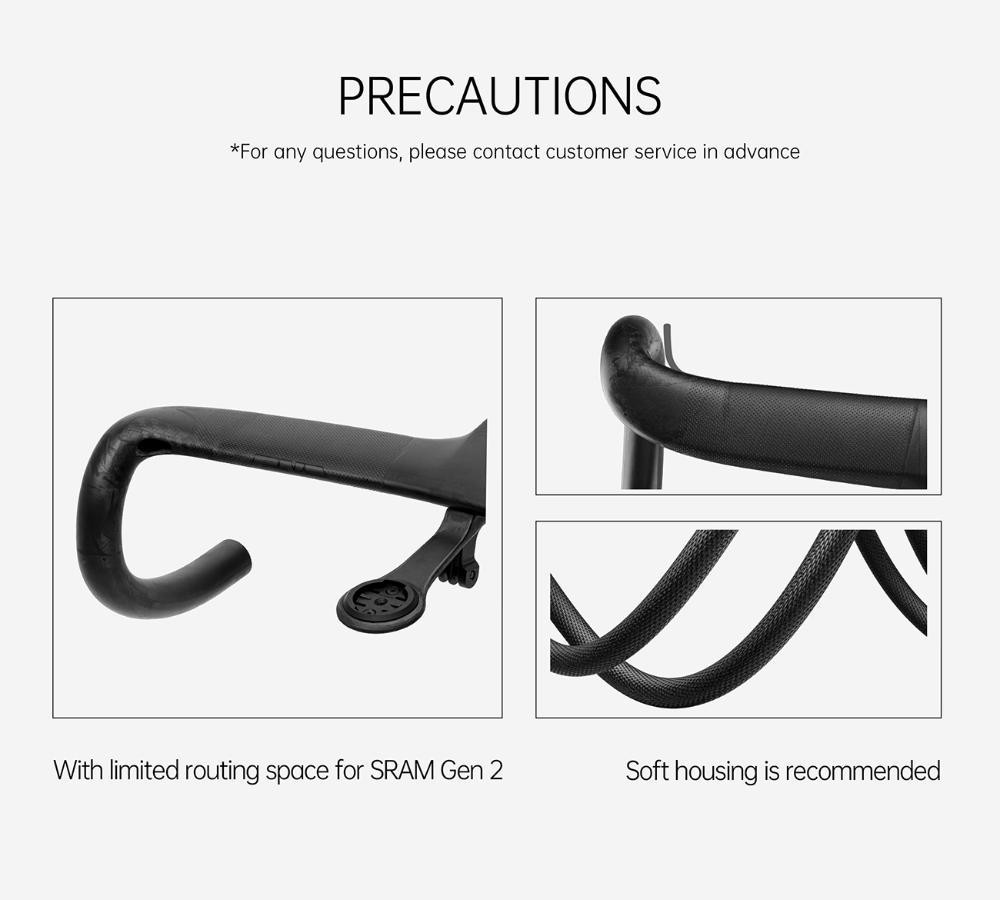

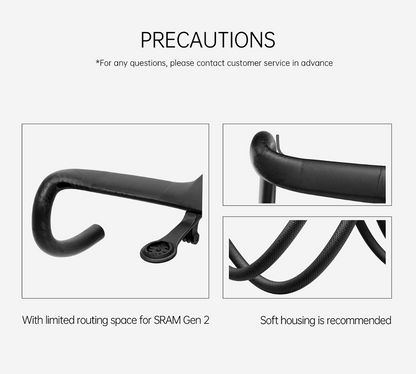

Compatible with fully internal cable routing systems.
Suitable for electronic groupsets.
OD2 (1-1/4") steerer-compatible, supplied with a 1-1/8" steerer shim adapter for wider frame compatibility.

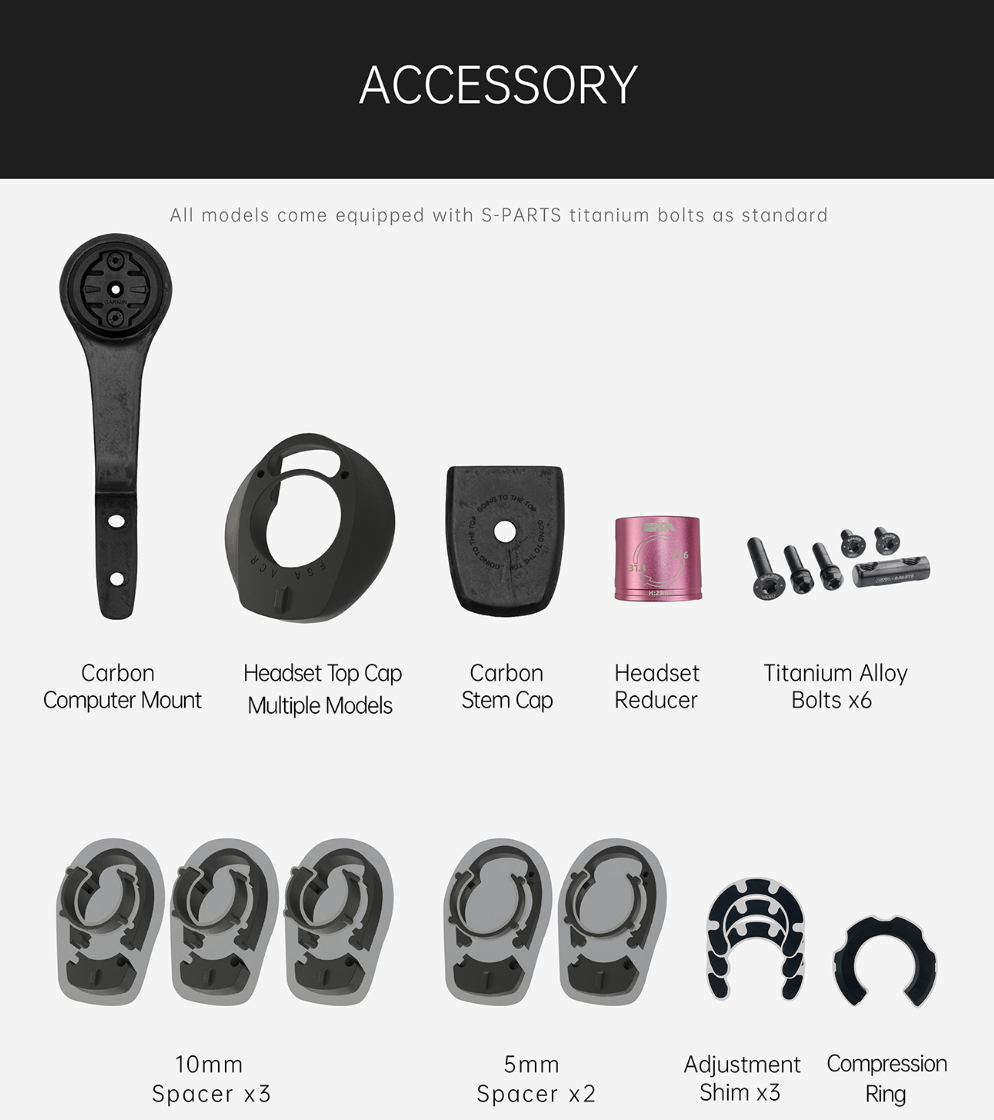

IN THE BOX
1 x GANNA Angle° Pro Integrated Carbon Handlebar
1 x Carbon GPS Computer Mount
1 x Carbon Stem Cover
1 x Headset Top Cap
1 x Headset Reducer Shim (31.8mm to 28.6mm)
3 x 10mm Headset Spacers
2 x 5mm Headset Spacers
3 x Adjustment Shims
1 x Compression Ring
6 x S-PARTS Titanium Alloy Bolts
