CHASER Titanium Universal Thru Axle for Roadbike Disc Brake

CHASER Titanium Universal Thru Axle for Roadbike Disc Brake

£0.00 GBP
£0.00 GBP
Sale Sold out
Taxes included.
Color: Silver

Chaser Sports Titanium Universal Thru Axle Kit

Premium, highly adaptable titanium thru-axles engineered to provide a universal, high-strength solution for disc-brake road and gravel bikes. Featuring an innovative, modular architecture for length and thread pitch adjustment, this kit replaces heavy, fixed factory axles with an ultra-lightweight setup that supports over 95% of modern bicycle models.

Technical Specifications

  • Diameter: 12mm

  • Base Shaft Length: Front: 106mm | Rear: 148mm

  • Adjustable Total Range: Front: 117–127mm | Rear: 159–169mm

  • Thread Pitch Compatibility Modules: P1.0, P1.25, P1.5, and P1.75 options included

  • Weight Profile: Front: 31.7g | Rear: 36.6g

  • Material Matrix: High-strength Tc11 Titanium Alloy core with ALU7075-T6 aluminium alloy components

  • Manufacturing Process: Full CNC machining, independent design modelling, high-precision polishing, and post-oxidation colouring

  • Installation Torque: Thread Pitch Modules: 3Nm | Thru Axle Body: 5–6Nm

Universal Fit & Adjustable Range Table

The modular spacing kit allows you to fine-tune the axle to mirror the exact total length and pitch dimensions of your frame's original stock hardware:

Position Base Core Length Total Adjustable Range Included Thread Pitches Weight
Front 106mm 117mm to 127mm P1.0 / P1.25 / P1.5 / P1.75 31.7g
Rear 148mm 159mm to 169mm P1.0 / P1.25 / P1.5 / P1.75 36.6g

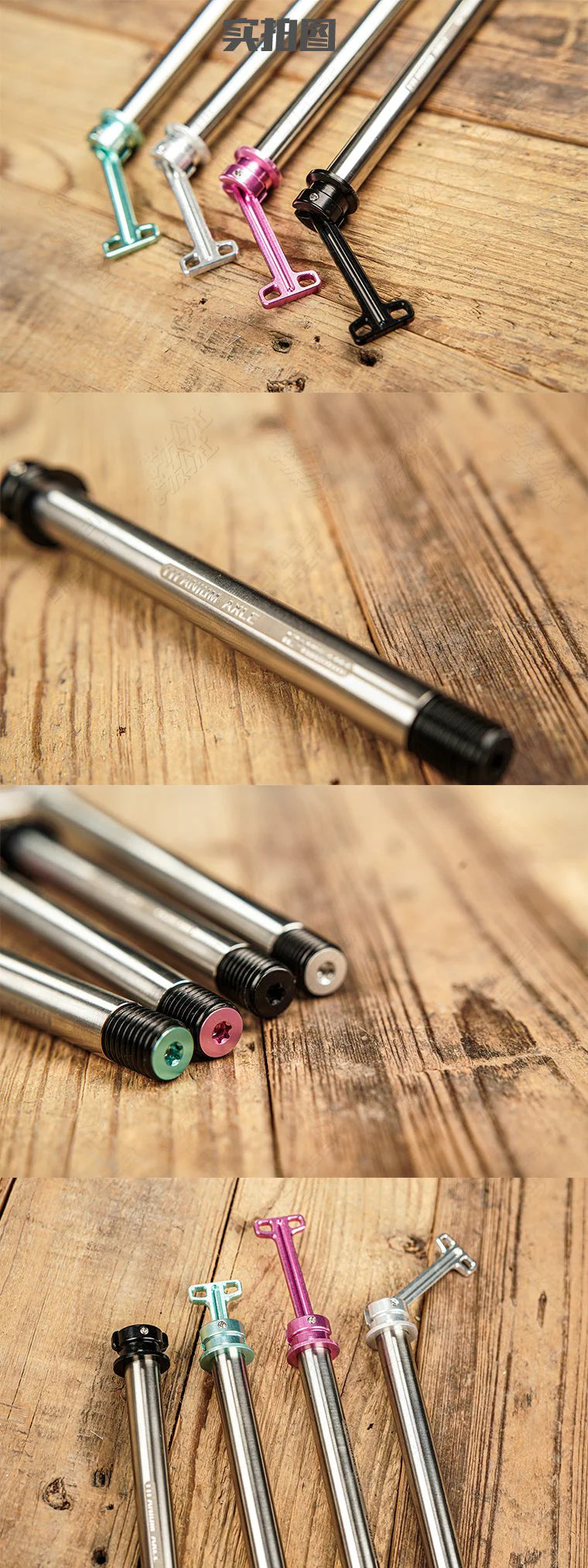

Modular Engineering & Multi-Pitch Compatibility

The Chaser Universal system solves the industry headache of disparate frame manufacturing standards. Crafted from ultra-strong, lightweight Tc11 titanium paired with premium 7075 aluminium accents, each axle features a fully modular drive end. By unthreading the rear securing screw, riders can instantly swap out the core thread module to match their frame's exact internal pitch requirements (1.0, 1.25, 1.5, or 1.75 mm).

The continuous lightweight structure undergoes a rigorous CNC polishing and post-oxidation colouring process, providing a high-gloss, premium finish that resists tool wear and corrosion.

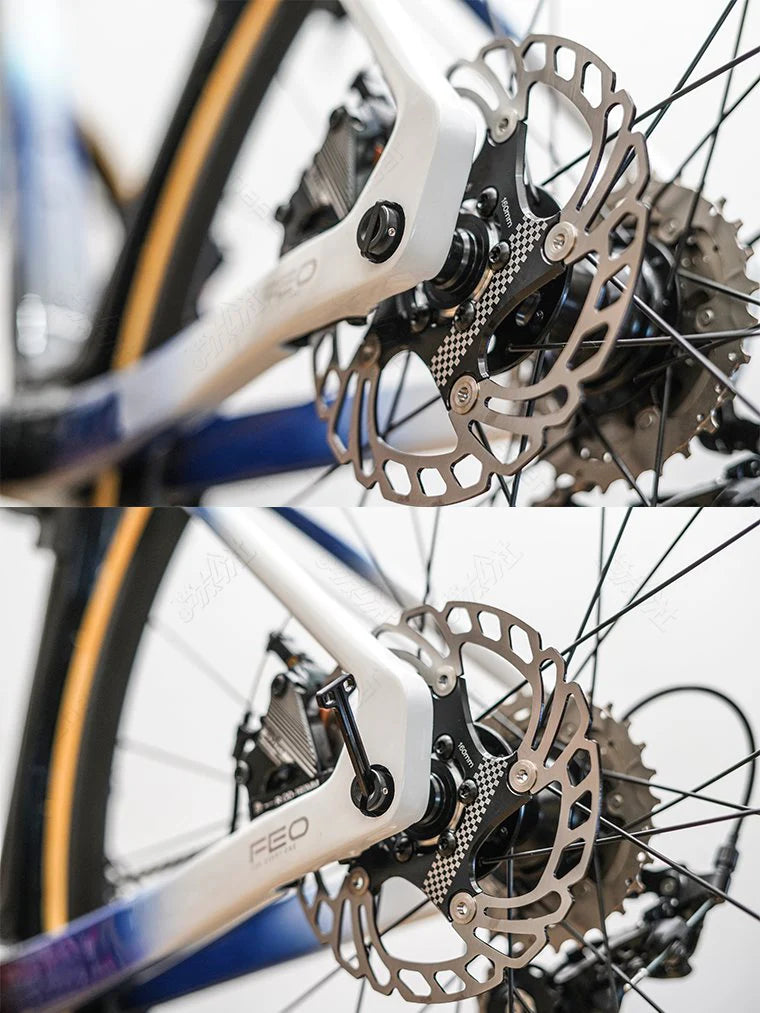

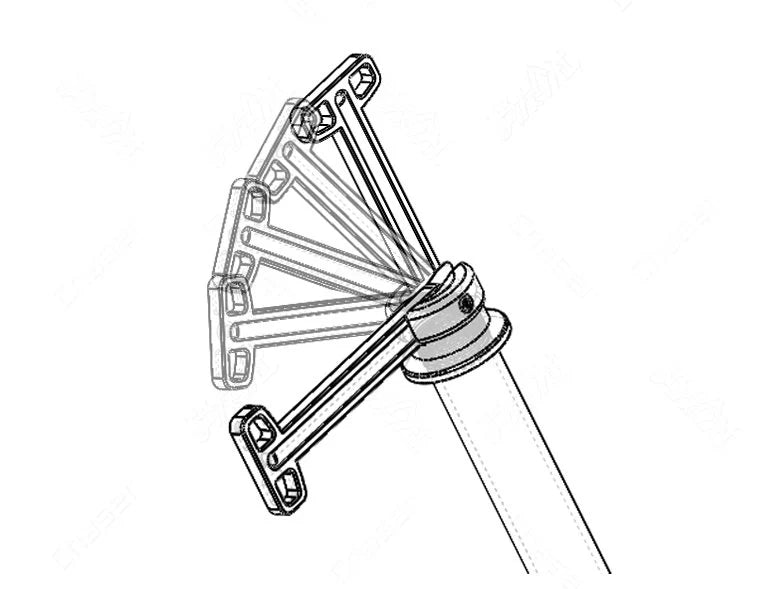

Integrated Concealed Tool System

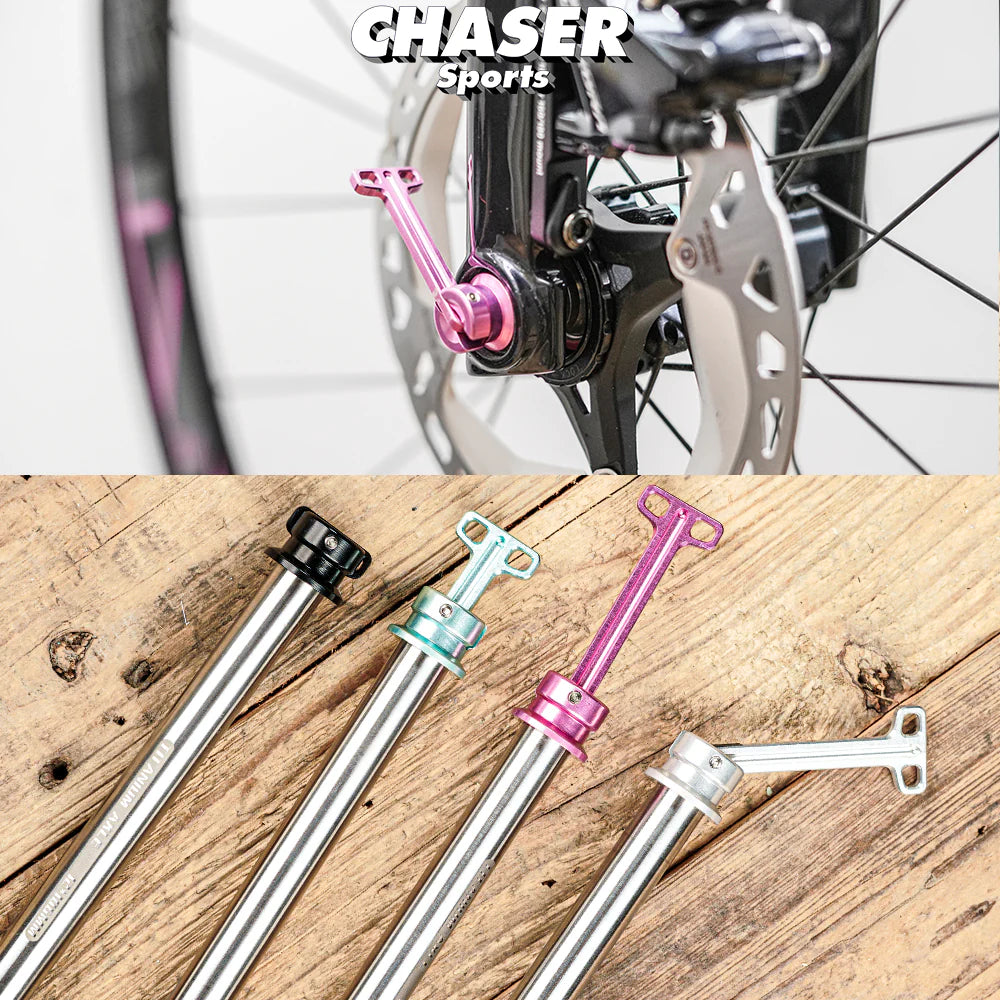

To provide an elegant aesthetic and aerodynamic edge, the thru-axle features a uniquely designed, built-in concealed lever system. The pull-out handle eliminates the need to dig through your saddle bag for separate hex keys when removing or reinstalling your wheel set mid-ride. Once pushed back flush into its housing, the simple profile ensures a clean, wind-cheating front end.

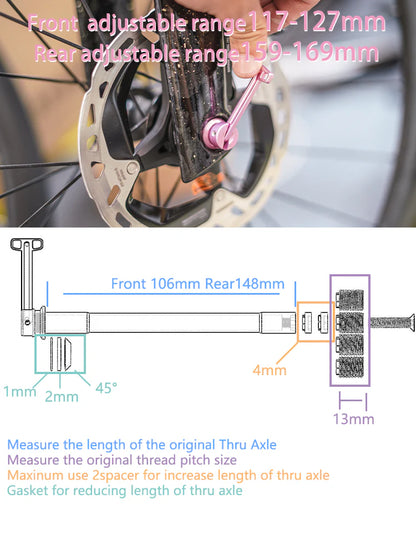

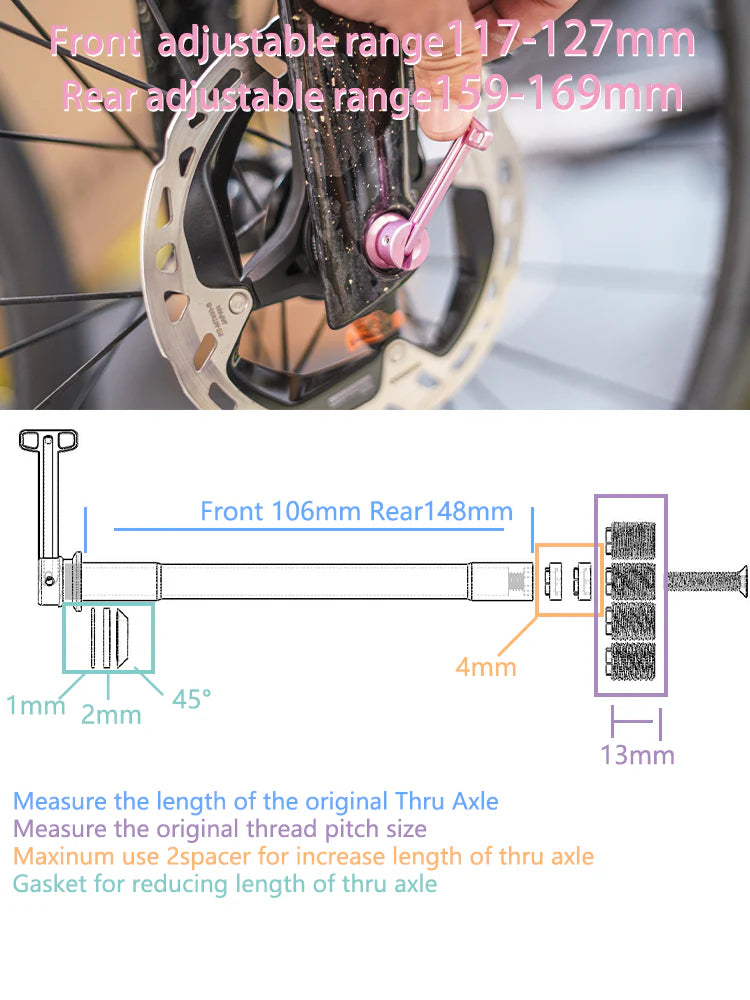

Length Adjustment Instructions

  1. To Increase Total Axle Length: Slide the provided 4mm spacers onto the threaded end of the main axle shaft before threading on your chosen pitch module. A maximum of two 4mm spacers can be safely stacked to extend reach.

  2. To Reduce Total Axle Length: Fit the interface washers (1mm, 2mm, or the 45° cone washer) adjacent to the drive handle head to precisely space out excess length against your fork or dropout face.

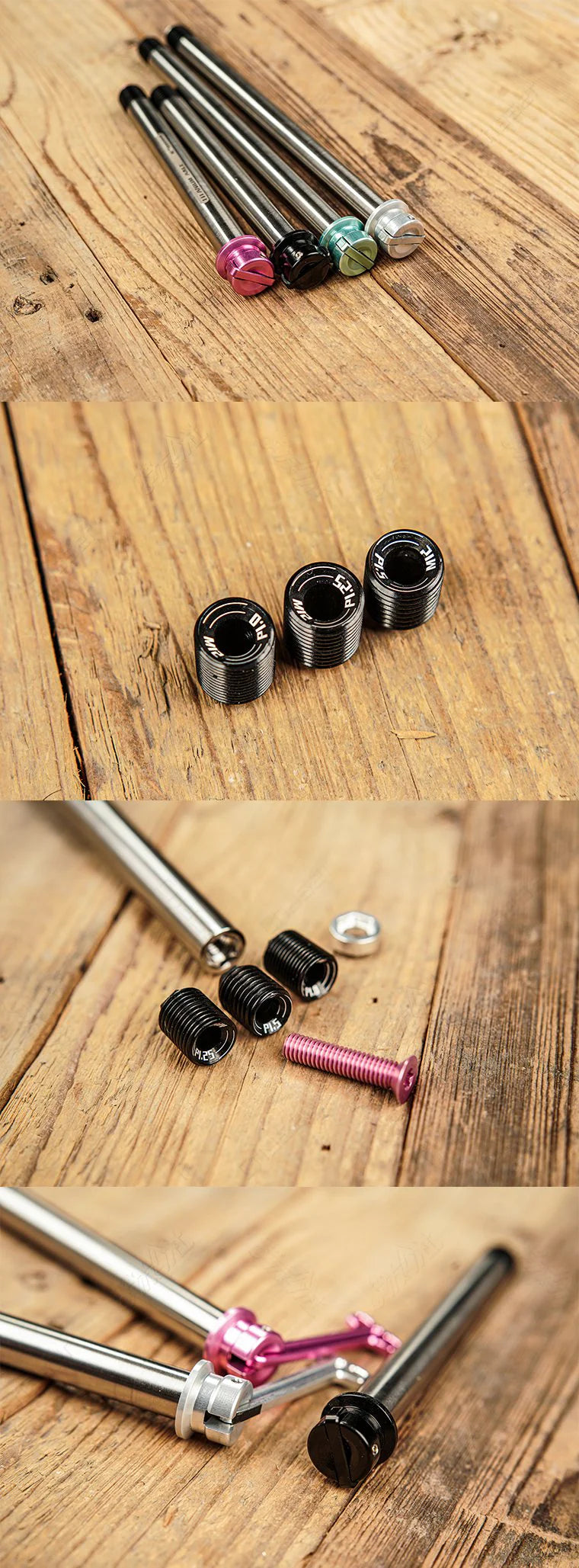

In The Box

  • 1 x Chaser Universal Titanium Thru Axle Shaft (Front or Rear core variant)

  • 4 x Interchangeable Thread Pitch Modules (P1.0 / P1.25 / P1.5 / P1.75)

  • 1 x Thread Pitch Module Fixing Screw

  • 2 x 4mm Extension Spacers

  • 1 x 2mm Interface Reduction Washer

  • 1 x 1mm Interface Reduction Washer

  • 1 x Tapered / Cone (45°) Face Gasket
