BIGROCK SKYLINE II

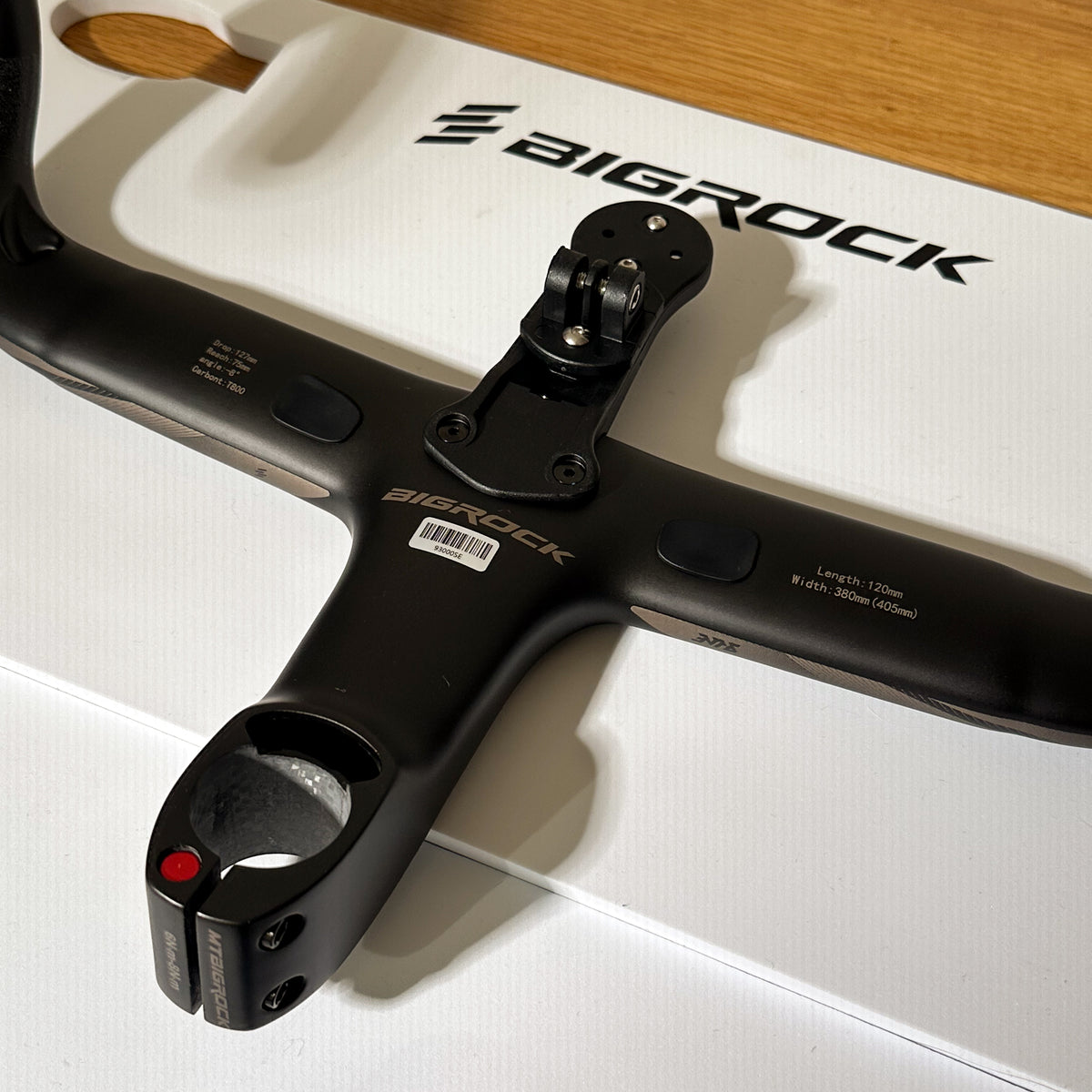

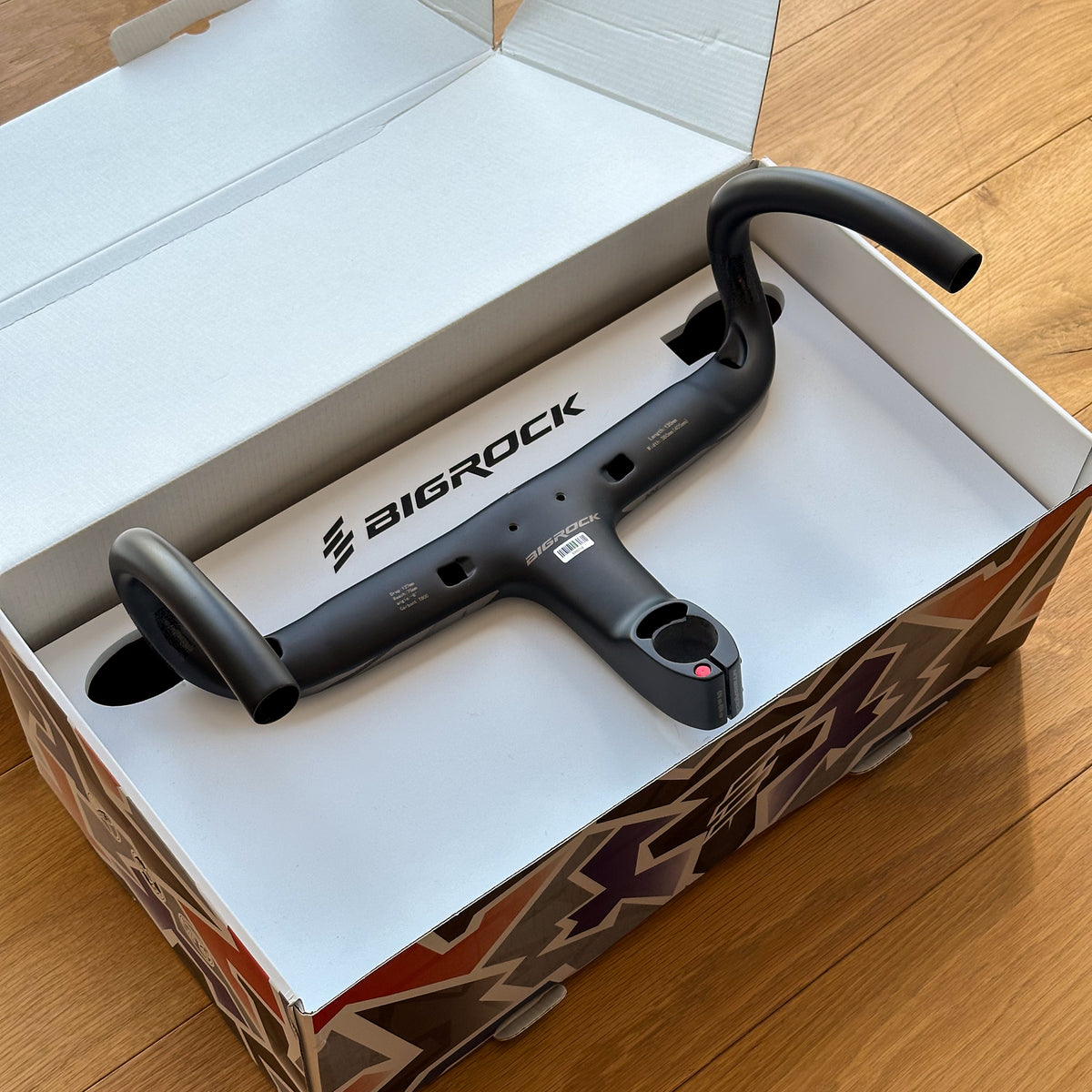

BIGROCK Skyline II Integrated Carbon Handlebar

Premium one-piece integrated carbon cockpit engineered for modern road racing and performance-focused builds, combining lightweight construction, aerodynamic efficiency and precise front-end handling.

Technical Specifications

• Top Width: 340, 360, 380, 400 or 420mm (Centre-Centre)
• Drop Width: 365, 385, 405, 425 or 445 mm (Centre-Centre)
• Stem Length: 70, 80, 90, 100, 110, 120, 130, 140 or 150mm
• Weight: Approx. 335g (400 × 100mm)
• Material: Toray T800 High-Modulus Carbon Fibre
• Construction: One-Piece Integrated Handlebar & Stem
• Reach: 75mm
• Drop: 127mm
• Drop Flare: 25mm
• Stem Angle: -8°
• Cable Routing: Fully Internal Cable Routing Compatible
• Fork Compatibility: OD1 (28.6mm) & OD2 (31.8mm) Compatible
• Test Standards: Impact resistance 28% higher than ISO/CE standards

LIGHTWEIGHT AERO INTEGRATED DESIGN

The BIGROCK Skyline II is constructed from premium T800 high-modulus carbon fibre using an advanced layup process to deliver an exceptional balance of stiffness, strength and low weight.

Its fully integrated one-piece cockpit design reduces weight while creating a clean aerodynamic front end with complete cable integration for a professional race-ready appearance.

The streamlined profile helps minimise aerodynamic drag while improving overall cockpit rigidity for more direct steering response and efficient power transfer.

PRECISION HANDLING & RIDER COMFORT

Designed around a compact 75mm reach and 127mm drop, the Skyline II provides a comfortable yet aggressive riding position suitable for racing, fast group rides and long-distance endurance riding.

The extended drop section offers a secure hand position when descending, sprinting and riding at high speed, while the integrated construction enhances front-end stiffness for confident handling.

FULLY HIDDEN CABLE ROUTING

Compatible with modern fully internal cable routing systems, allowing brake hoses and gear cables to remain completely concealed for a clean cockpit appearance and improved aerodynamic performance.

Suitable for a wide range of modern road bike frames supporting integrated cable routing.

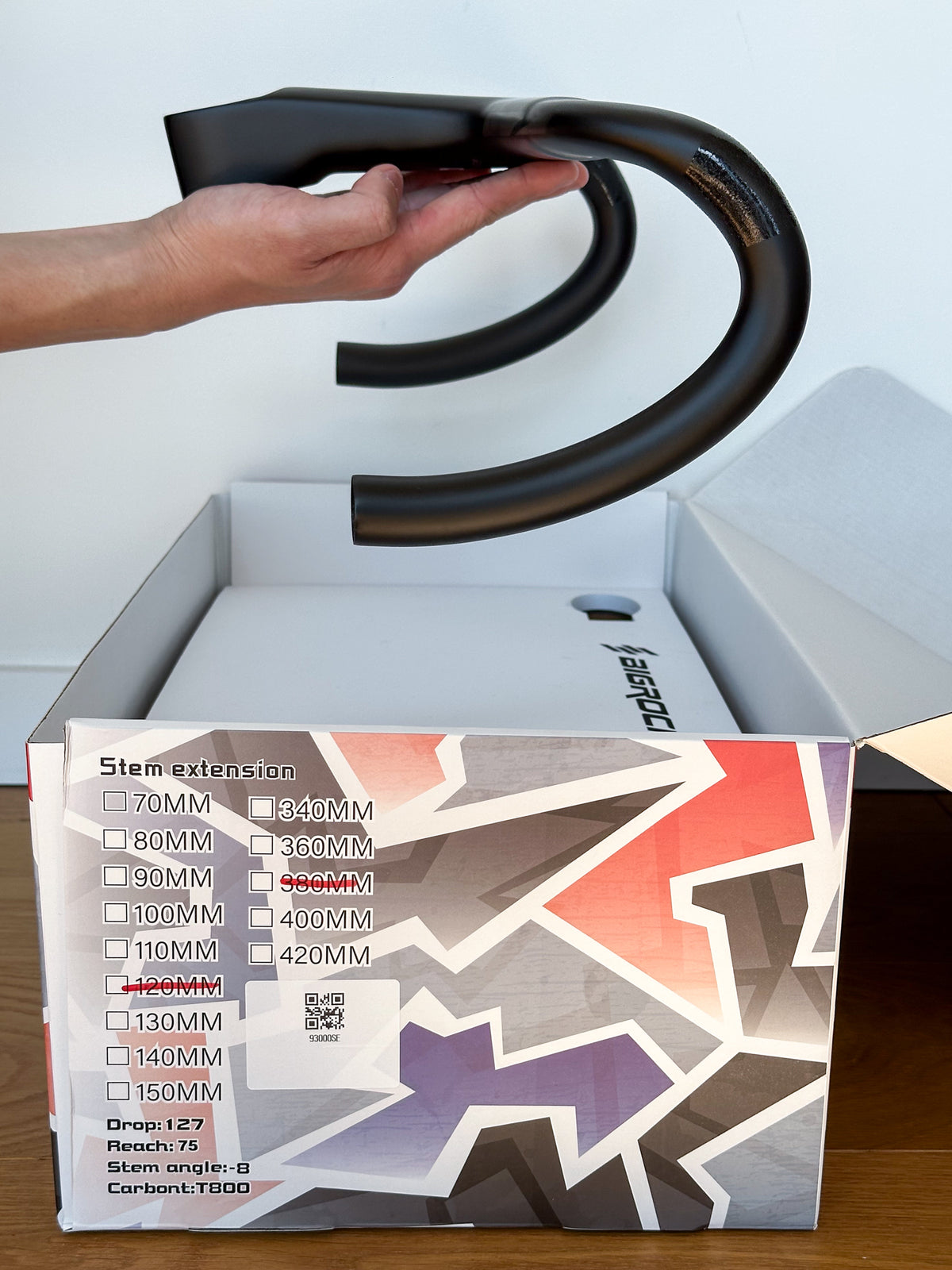

AVAILABLE SIZES

(Handlebar Top Width / Stem Length)

340mm × 70-150mm

360mm × 70-150mm

380mm × 70-150mm

400mm × 70-150mm

420mm × 70-150mm

COMPATIBILITY

Compatible with most modern road bike frames using integrated cable routing systems.

Supports both OD1 (28.6mm) and OD2 (31.8mm) steerer standards with appropriate hardware.

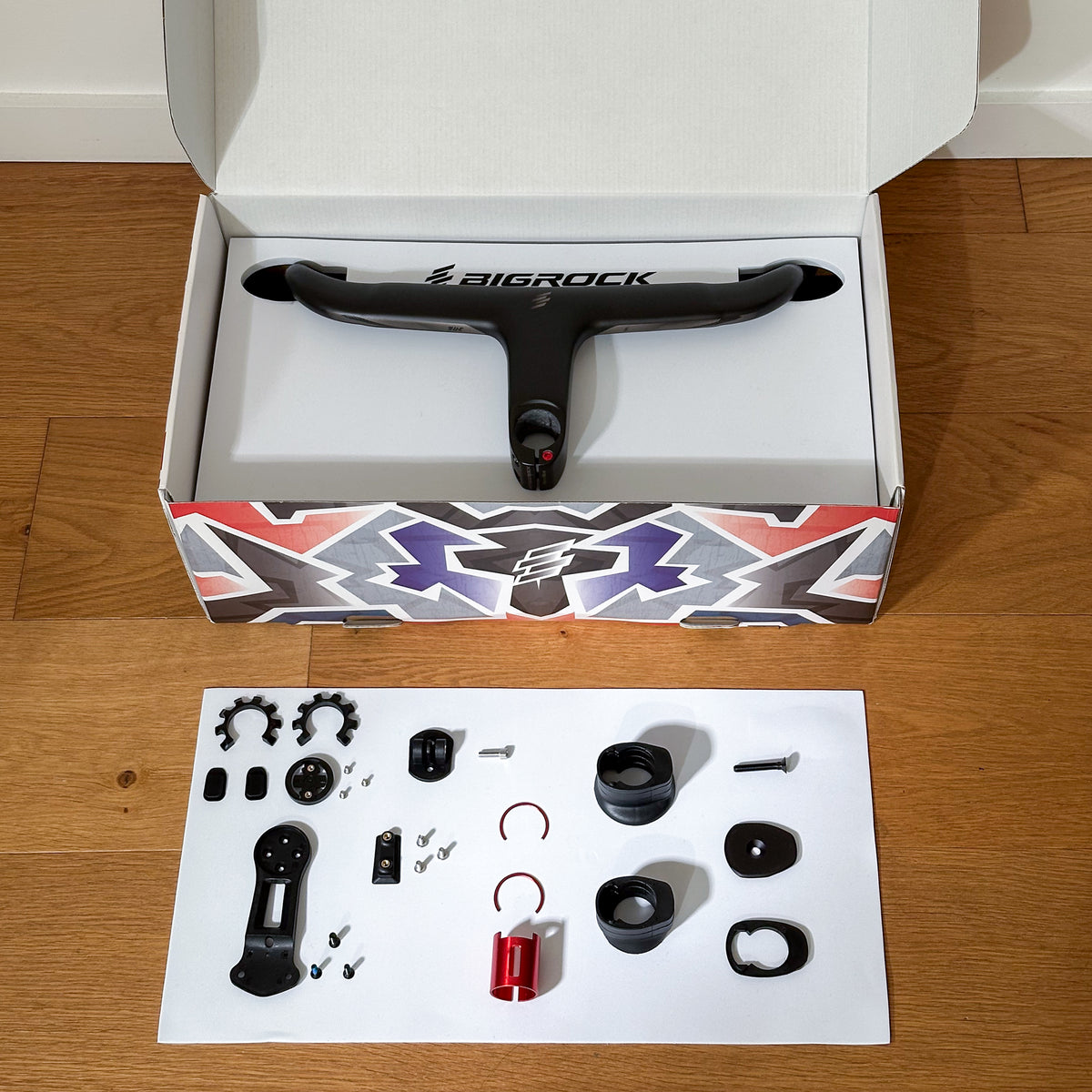

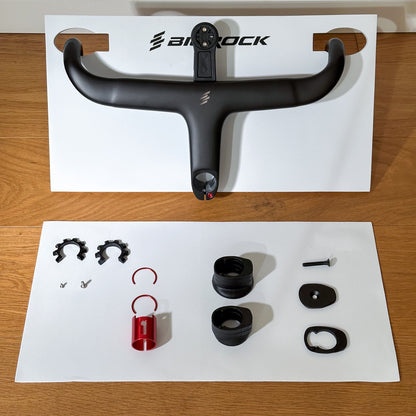

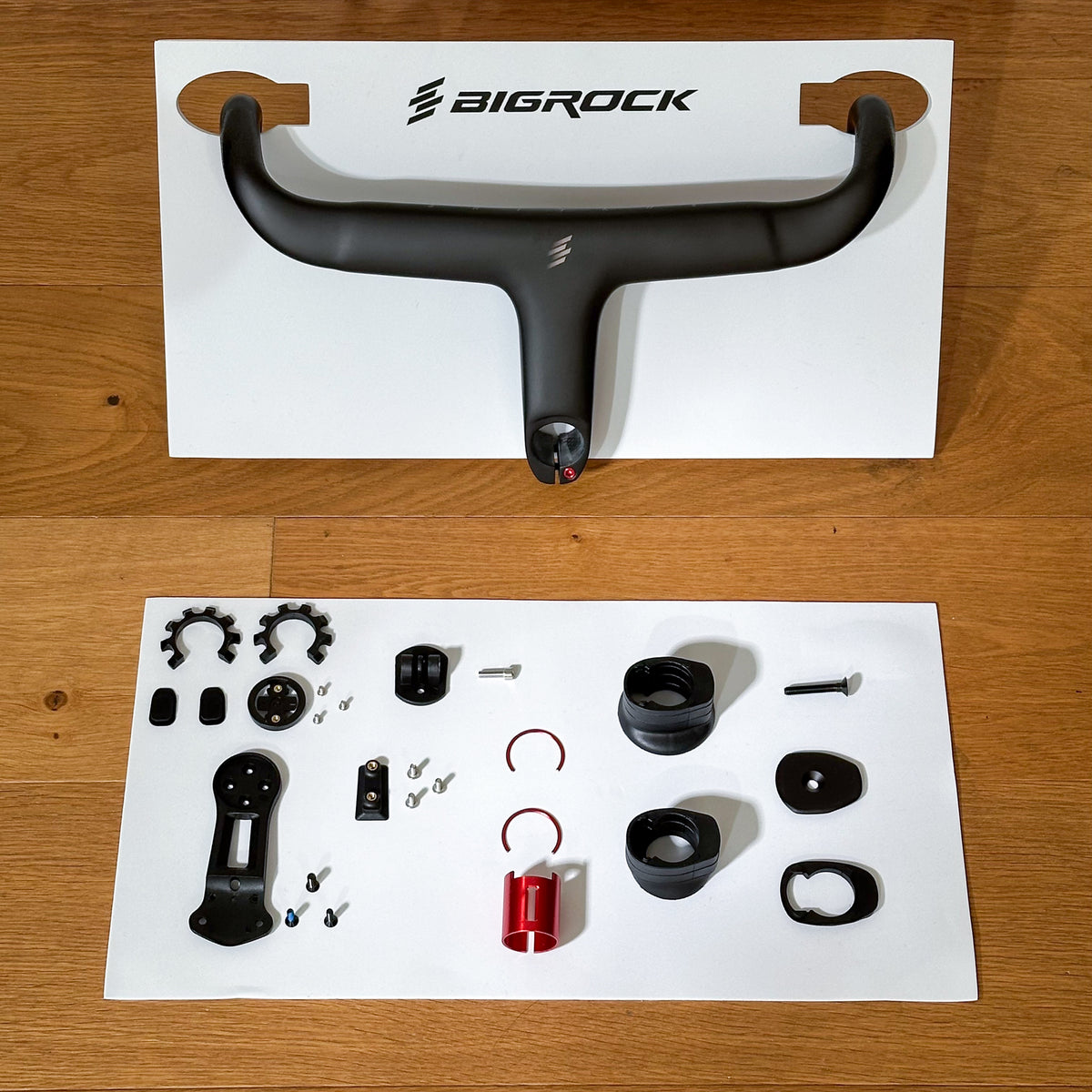

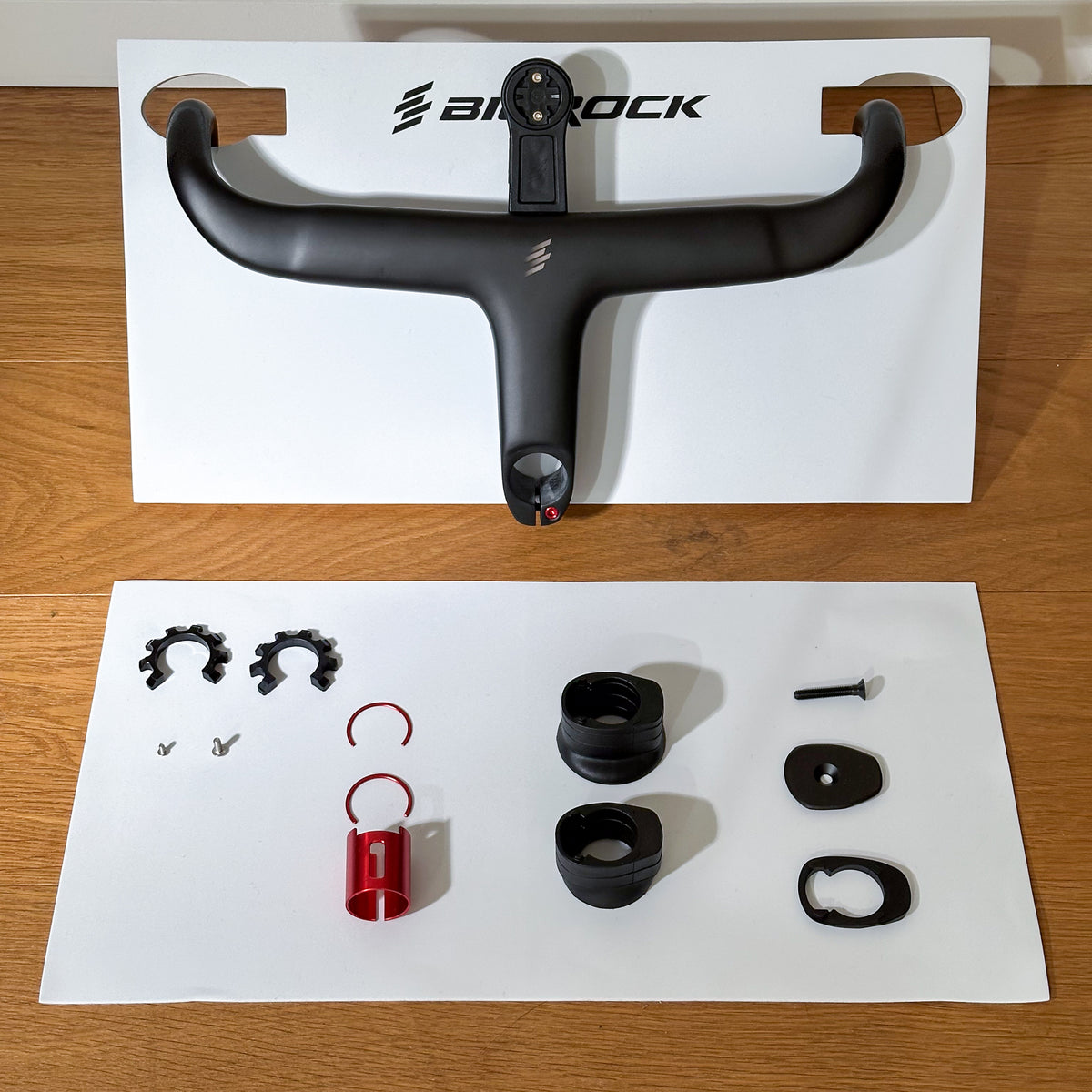

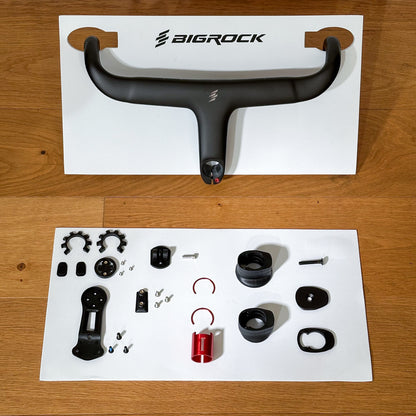

IN THE BOX

1 x BIGROCK Skyline II Integrated Carbon Handlebar
1 x Integrated GPS Computer Mount
4 x 10mm Headset Spacers
1 x 5mm Headset Spacers
1 x Steerer Tube Shim Adapters (OD1 / OD2)
2 x Compression Sleeve
2 x Adjustment Shims
1 x Titanium TC4 Bolt Set
2 x Cable Entry Cover
